| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | 250×200×120 mm Box package |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Total Output Power: | 220W | Jamming Range: | Up To 150m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
|---|---|---|---|
| Power Supply: | 50 To 60Hz, 100 To 240V AC | With AC Adapter: | (AC100-240V-DC27V) |
| Block Frequency: | Gsm Cdma Pcs 3g 4g 5g Wifi Vhf Uhf GPS | Feature: | Power Of Each Frequency Band Can Be Adjustable Independently. |
| Dimension: | 220×280×130 Mm | Antenna: | External Double Channel Directional Panel Antennas All The TX Frequency Covered Down Link Only |
| High Light: | mobile network jammer device,mobile phone network jammer |
||

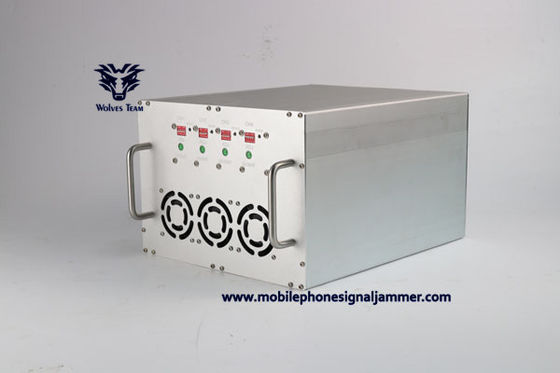

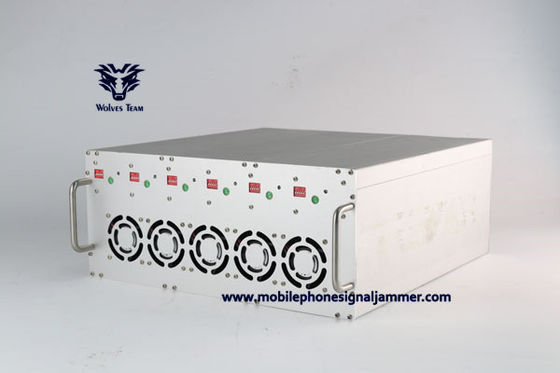

This 250W Indoor OEM signal jammer is really powerful and can allow you to choose four or five jamming frequency bands among the following frequency bands CDMA, GSM, DCS, PCS, 3G, WiFi, GPSL1, 4G LTE, 4G Wimax, 5G andGPS UHF VHF, in this case people can just tell the four or five jamming frequency bands they want. Thus you can also turn on or turn off the frequency bands according to the real needs as well without affect the jamming functions of other frequency bands at the same time for this OEM signal jammer with Omni-directional Antennas.
Advantages and Features:
1. All the RF frequencies only blocking the downlink band, never to the uplink.
2. Good cooling system. Work 24 hours/365days continuously.
3. Easy and Fast Installation.
Applications:
Meeting Room, Oil and Gas Storage Facilities and fields, Hospitals, Theatres, Recording Studios, Banks, Contract Tendering Rooms, Churches, Conference Rooms, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Prisons, Courts, Border Patrol and Drug Enforcement, Customs, House, Small prison areas.
Specification:
| Output Interface | Output Frequency | RF Output watt |
| CH1 | CDMA/GSM: 851-960MHz | 20W |
| CH2 | DCS: 1805-1880MHz | 20w |
| CH3 | PCS: 1930-1990MHz | 20w |
| CH4 | 3G: 2110-2170MHz | 20w |
| CH5 | 4G LTE:(USA:725-770MHz) or (Europe:790-826MHz) | 20w |
| CH6 | 4G Wimax:(USA:2345-2400MHz) or (Europe:2620-2690MHz) | 20w |
| CH7 | WiFi 2.4G: 2400-2500MHz | 20w |
| CH8 | 5G: 3400-3600MHz / 3600-3800MHz | 20w |
| CH9 | VHF 135-175MHz | 20w |
| CH10 | UHF 400-470MHz | 20w |
| CH11 | GPS 1500-1600MHz 20W | |
| Total output power | 220w | |
| Jamming range | up to 150m,still depends on the strength signal in given area | |
| Jammer Module Number | 11 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 220×280×130 mm | |
