| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | Box , 285 x 255 x 140mm |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/montgh |
| Total Output Power: | 80W | Jamming Range: | Up To 100m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
|---|---|---|---|
| Power Supply: | 50 To 60Hz, 100 To 240V AC ,DC5V/20A | Working Temperature: | -10 To –55?i> |
| Relative Humidity:: | ≤90%(RH) | Block Frequency: | GSM CDMA DCS 3G 4G 5G WIFI |
| Power: | AC Adapter | Dimension:: | 285 X 255 X 140mm |
| High Light: | mobile network blocker device,mobile network jammer device |
||
The Indoor powerful 60W jammer has a wide affected frequency ranges to include CDMA/GSM, DCS/PCS, 3G, 4G LTE, 4G Wimax 5G . It also has a jamming range up to 100m, depending on the signal strength in the given area. Within the range, just turn on the jammer, all wireless connection to 2G, 3G, 4GLte/Wimax 5G network will be disabled at the same time. Also, the jammer is a selectable unit. In other word, user can choose to allow operation of one or a few of frequency bands. Adjustment of ON or OFF any of the single bands will not cause any disruption to the operation of others..the new designed signal jammer that is designed with the ability to cut off the signals of GSM, DCS, PCS, 3G,4G, 4G LTE,4G WiMax 5G and at the same time

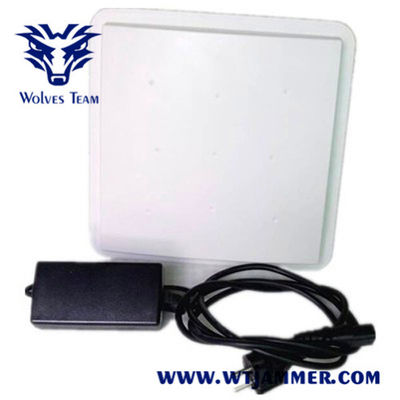

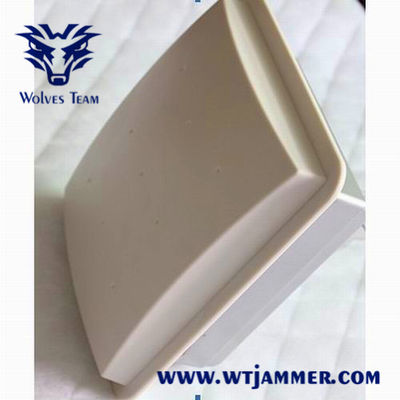

And since it owns a 80W output power and external directional panel antennas, the shielding radius of it can reach 60m. Besides with the remote control you can open and close the jammer easily, which is really convenient. What’s more, all the TX frequency covered down link only.
Such cell phone jammer can be used in places like meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, factories, banks, trains, bus and more. But for some special places like hospitals and gas stations for special purpose, you’d better test first to make sure no interference happened to the normal operation of their equipment and instrument.
Specifications
Affected Frequency Ranges:
| Output Interface | Output Frequency | RF Output |
| CH1 | CDMA 800: 850 to 894MHz | 10W |
| CH2 | GSM 900: 925 to 960MHz | 10W |
| CH3 | PCS: 1920 to 1990MHz (DCS) | 10W |
| CH4 | 3G: 2110 to 2170MHz | 10W |
| CH5 | DCS 1805-1880MHz | 10W |
| CH6 | 4G LTE:(USA:725-770MHz) or (Europe:790-826MHz) | 10W |
| CH7 | 4G Wimax (US.2345-2400MHz or (EU.2620-2690MHz) | 10W |
| CH8 | 5G :3400-3600MHz/3600-3800MHz | 10W |
| Total RF Power | 80 Watt, | |
| Power supply | 50 to 60Hz, 100 to 240V AC ,DC5V/20A | |
| Shielding area | Up to 100m, the jamming radius still depends on the strength signal in given area | |
| Jammer Module Number | 8 | |
| Safety Regulation | AC Adapter UL (E190582) CSA (LR112971 Level 3) | |
| Weight | 10.00 Kg | |
| Size (length x wind x high) | 285 x 255 x 140mm | |
| Humidity | 30%-95% | |
| Running Temperature | -20 to +55 Celsius Degree | |
Accessories
