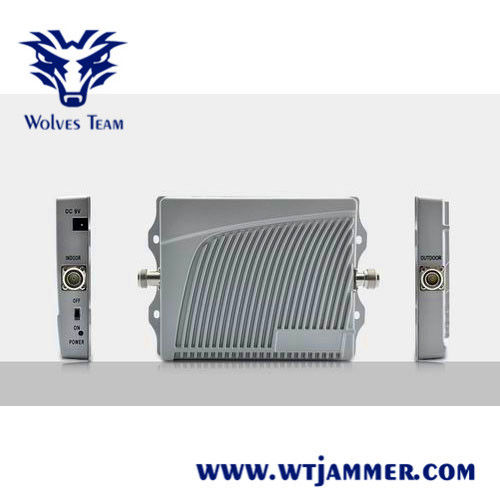

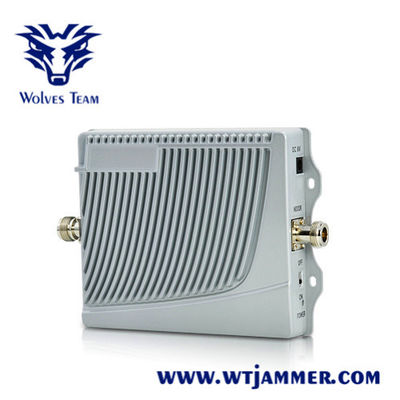

Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster

Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster

  • Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster
  • Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster
  • Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster
Tri - Band GSM900 DCS1800 WCDMA2100 Mobile Network Signal Booster
Product Details:
Place of Origin: China
Brand Name: wolvestTeam
Certification: CE
Model Number: JM171511
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: 220 x 180 x 20 mm Box
Delivery Time: 5 days
Payment Terms: T/T
Supply Ability: 100pices/month
Contact Now
Detailed Product Description
Application Area: House, Office, Basements,Factory ,ect Coverage Area: 200Sqm
Feature: High Gain, Easy Installation And Operation. I/O Impedence: 50Ω/N Connector
Advantage: CE And RoHs Approved Dependability Stand By: GB6993-86 Standard
High Light:

WCDMA2100 Mobile Network Signal Booster

,

DCS1800 mobile phone signal booster



Product Description





Designed for use in larger office buildings, warehouses or manufacturing facilities with signal shadowed environments, this Tri-Band GSM900 DCS1800 WCDMA2100 Cell Phone Signal Booster offers 50dB GSM/DCS/WCDMA (890~915MHz / 1710-1785MHz / 1920-1990MHz) and 200 square meters coverage area. With it, you'll experience fewer dropped calls, faster data rates, and clearer reception.

This Cell Phone Signal Booster device is featured with easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cell phones, followed the replacement of GSM 900, GSM 1800, and WCDMA 2100 network. Tri-Band GSM900 DCS1800 WCDMA2100 Cell Phone Signal Booster comes with everything you need to boost coverage in your area! This product is simple to install, comes with 100% free technical support.

What are you thinking about? Catching it and have it now!





Specification

  • Frequency range:
Up Link 890~915MHz/1710-1785MHz/1920-1990MHz
Downlink 935~960MHz/1805-1880MHz/2110-2180MHz
  • Gain ( dB):Uplink Gp≥50 Downlink Gp≥55
  • Export power (Po):≥+17dBm
  • Pass band ripple:≤3dB
  • I/O impedance: 50Ω/N connector
  • Noise figure:≤4dB
  • Transmission Delay:≤0.5μs
  • Ambient temperature:-10?0?i>
  • Power supply:AC110220V 4555Hz
  • Size: 220 x 180 x 20 mm
  • Reliability: To the GB6993-86 standard
  • Electromagnetic compatibility: To the ETS300 694-4 standard
  • Function:

--a) Power supply LED denote

--b) Export power LED denote

  • Coverage area: Up to 200M2

Accessories

  • Indoor Antenna

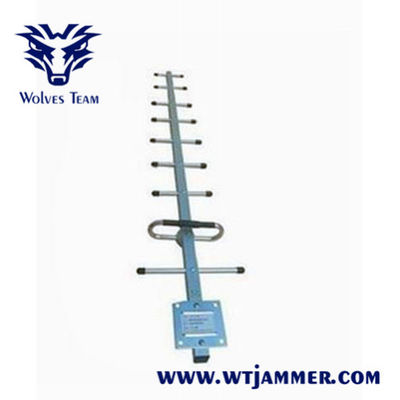

  • Outdoor Antenna
  • Power Adapter
  • Coaxial Cable 5M
  • Coaxial Cable 10M
  • Indoor Antenna Accessories and Screws
  • User Manual
